Allans - C Arm

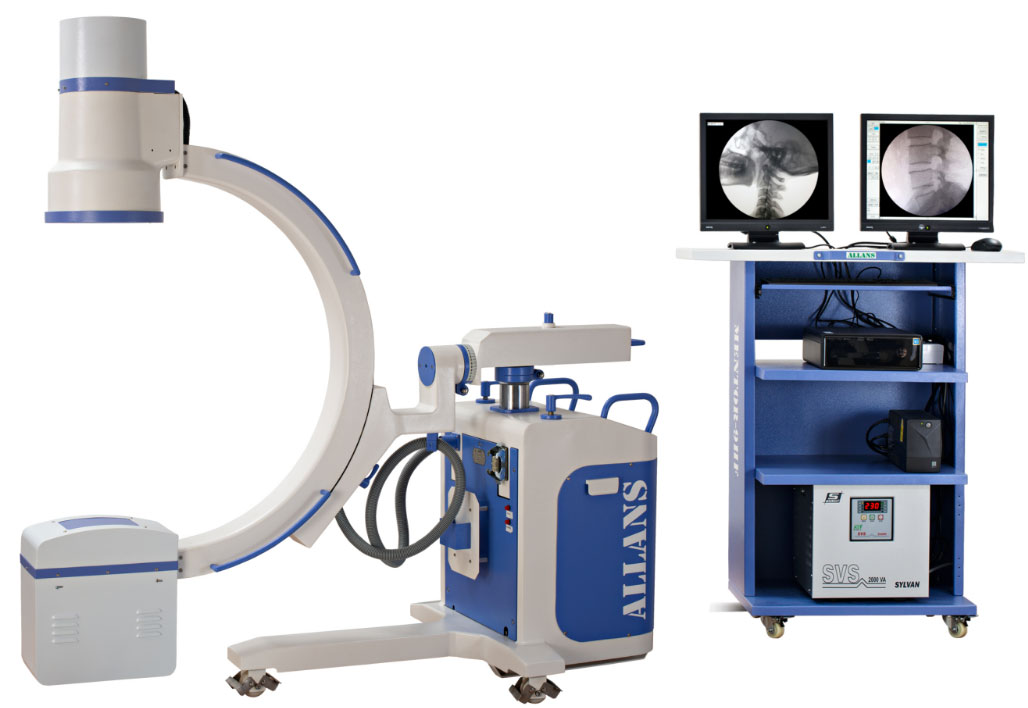

MENTOR-9HF

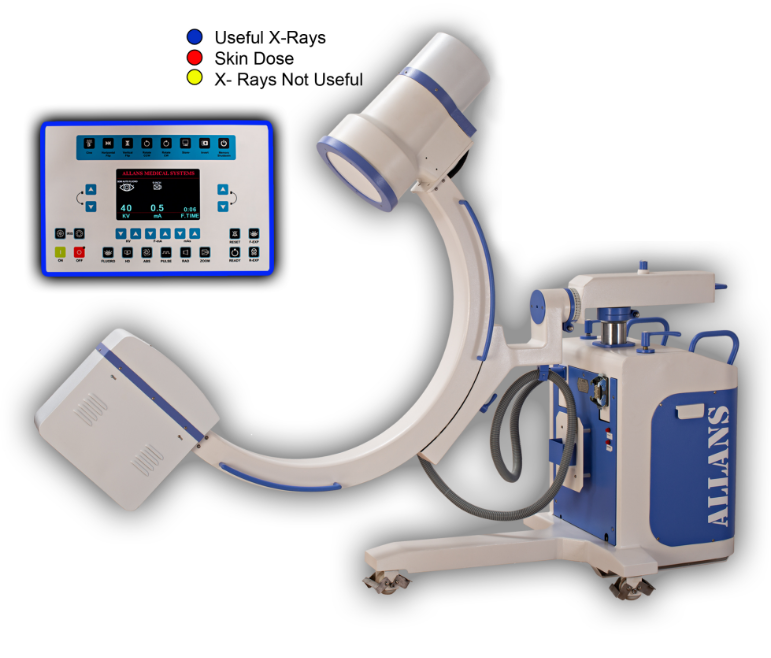

ALLANS high frequency C-Arm's are incorporated using the latest state-of-the-art High Frequency technology(70KHZ) in which there is minimal production of non useful/harmful X-rays which providing more advantages than line frequency.
- Gives 70% to 80% more output than Line frequency machines.
- Very low skin dose because of negligible soft radiation.
- Output of HF is more constant than LF output because of high frequency.
- Less Exposure time required to get image compared to LF.
- HF generators ensure perfect dose parameters for desire image.
Database management
- Very convenient for image storage and search.
- Easy management of patient database.
- Compare live images
- Compare live images and saved images from the database side by side during a patient examination.
- Image Storage & Memory
- Hard Drive Capacity: 1TB Memory
- Store more than 10,000 frames of images.
- Variety of diagnostic image control tools
- Zoom, Contrast, Reverse, Rotation
- Noise filtering, Edge Enhancement,
- Image processing: Real time & Post processing
- Image Size: 1024 x 1024
- Pixel depth: 12 bits
- Automatic image capture
Specifications
- Computer PC System
- Window XP, Intel 2 Dual CPU
- 3 GHZ, 1.98 GB of RAM
- 1 TB hard driver
- DIS software
- Frame Grabber B/D adapter
- DVD/CD-ROM drive
Image Processing
- Window Level (contrast adjustment)
- Real time & Post-Processing
- Pan & Zoom Control
- Image flip ( Horizontal & Vertical)
- Image rotation (360°)
- Noise reduction & recursive filter
- Edge Enhancement (sharpness)

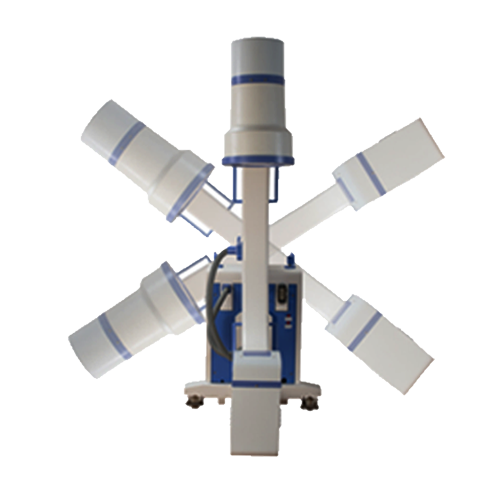

270° C-Arm rotation on each side, with manual brake for locking

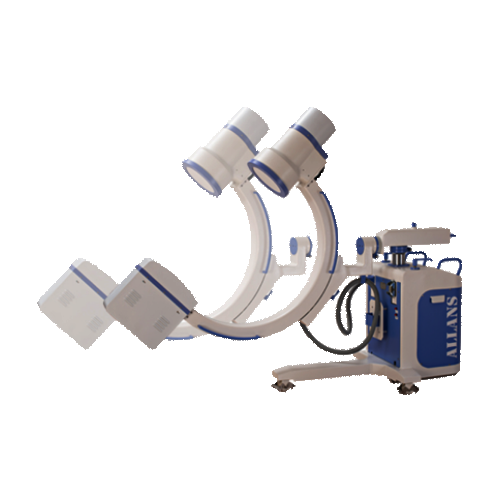

- Orbital Movement: 125°
- Free space: 780 mm (+10 mm)
- SID: 980 mm (±10 mm)

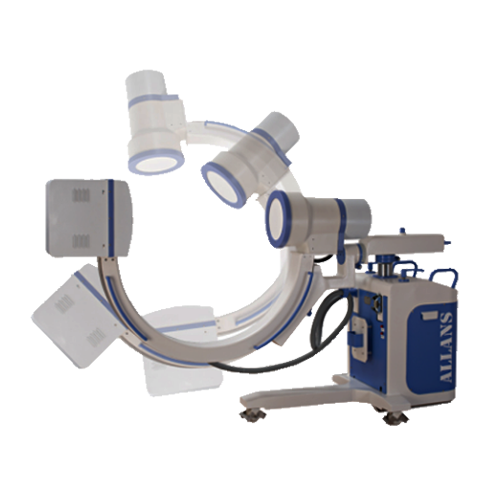

200 mm (± 10 mm) Horizontal C-Arm run, with manual brake for locking
