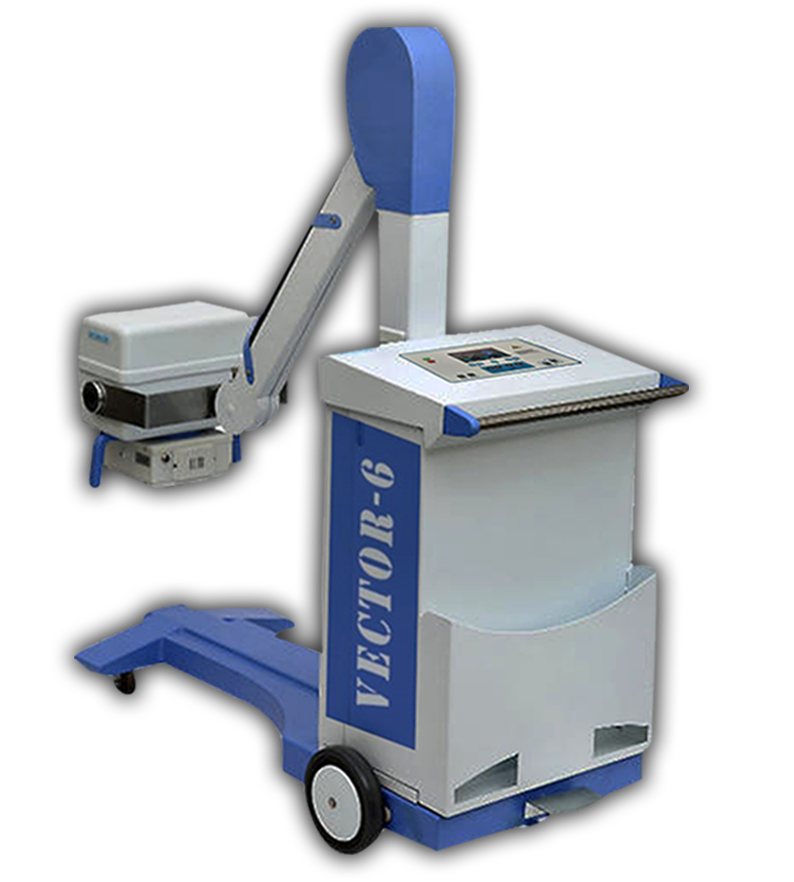

Allans - High Frequency Vector Series 3.5/5/6/6R
| SPECIFICATION | HIGH FREQUENCY MOBILE /FIXED X-RAY GENERATOR | |||
|---|---|---|---|---|
| MODEL | VECTOR-3.5 | VECTOR-5 | VECTOR-6 | VECTOR-6/R |
| MAX OUTPUT (Kw) | 3.5 Kw | 5 Kw | 6 Kw | 6 Kw(ROTATING) |
| Kv RANGE | 40-110 Kv | 40-110 Kv | 40-110 Kv | 40-110 Kv |
| mA RANGE | 20-80 mA | 20-100 mA | 20-120 mA | 20-150 mA |
| FOCAL SPOT | 0.6/105 | 0.3/0.6 | ||
| mAs RANGE | 0.2 TO 250 mAs | |||
| TIME | 4 MS TO 5 SEC | |||
| X-RAY TUBE | STATIONARY ANODE DUAL FOCUS | ROTATING ANODE DUAL FOCUS | ||
| DIGITAL DISPLAY | Kv, mA AND mAs | |||

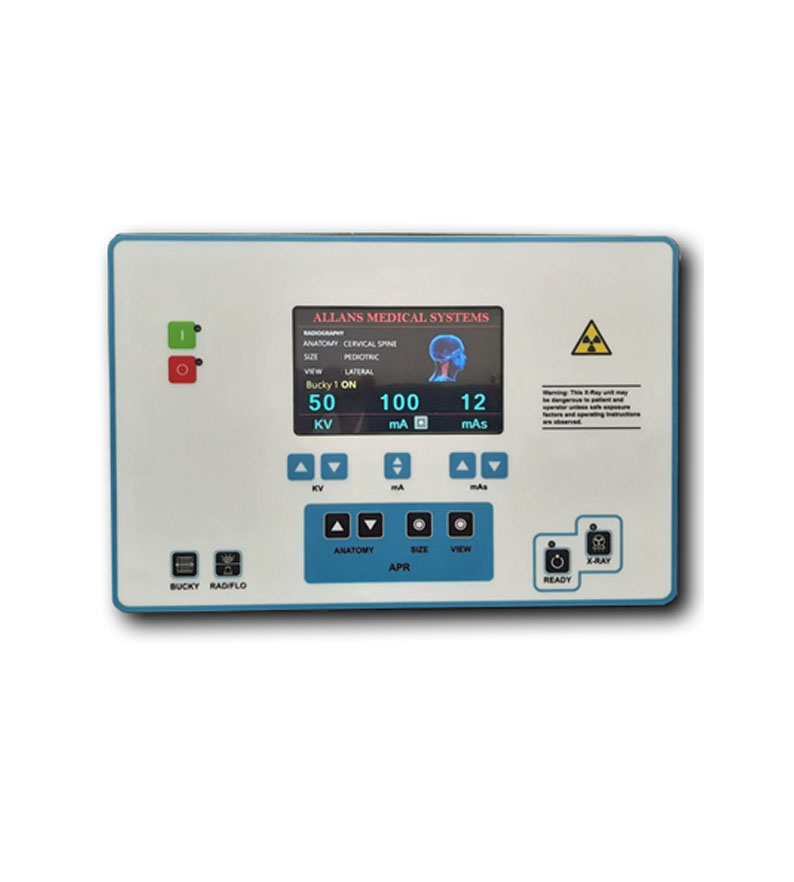

| CONTROL PANEL | MEMBRANE KEY BOARD,LCD | |||
| APR FACILITY | AVAILABLE | |||
| COLLIMATOR | MANUALLY /MOTORIZED LIGHT BEAM DIAPHRAGM (LBD)-OPTIONAL | |||
| POWER REQUIREMENT | 1 PHASE 200/220/230 VAC WITH 15 Amp POWER SOCKET | |||
| TUBE STANDS | COUNTER BALANCED MOBILE /SPRING BALANCE MOBILE/CEILING TO WALL STAND | |||
| BETTERY/CAPACITOR BANK | OPTIONAL | |||
