Allans - DR Panel
Csi / Gos
140 Um
2560 x 3072 (3543)
16 Bit
65536 Grey Scales

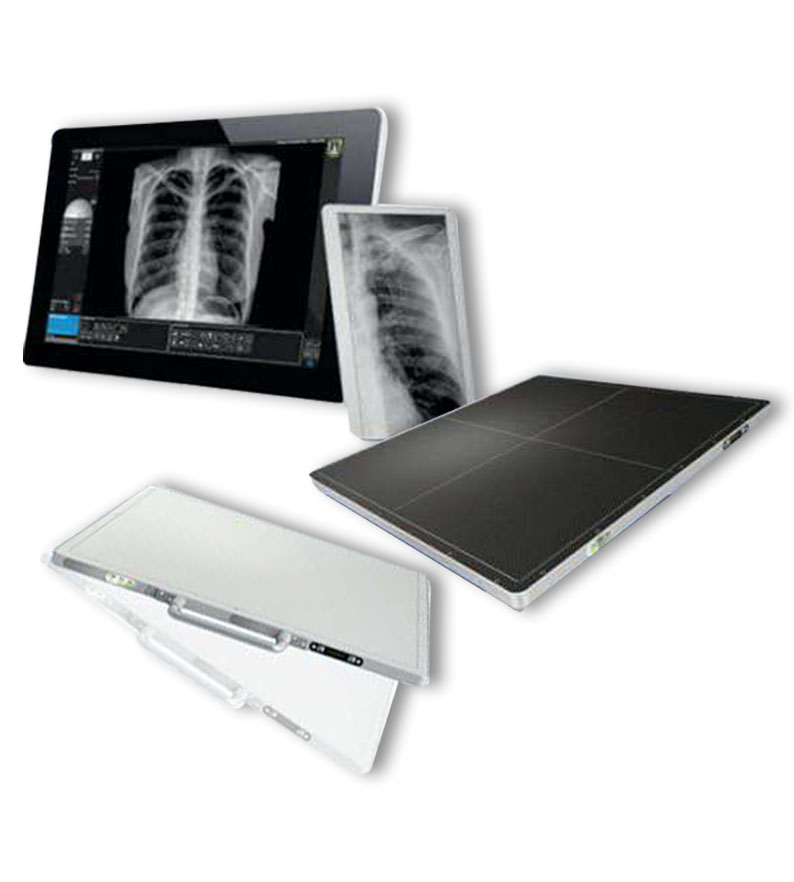

Type 3543 Is A Cassette – Sized Flat Panel Detector With High Performance. The Transmission Speed Of It Up To 1300 Mbps Based On 3543 Supporting Ieee 802.11 Ac.The Detector Output High Quality Images With High Dqe And Resolution. Equipped With Highly Sensitive Aed Function, Ity Is Easily Synchronized With Any Type Of Generators.
Portable
- Ultra Slim, Ultra Light, Wireless
- Anti- Water, Anti –Drop, Anti-Theft
- Longest Battery Standby Time
Reliable
- Work In The Toughest Environments
- Meet Rigorous Medical Requirement
- Own Super Reliable Communication Protocol
Durable
- Design Rigorously
- One –Key Calibration
- Service Remotely
| DESCRIPTIONS | SPECIFICATIONS |
|---|---|
| DETECTOR TECHNOLOGY | A–SI |
| SCINTILLATOR | GOS /CSI |
| IMAGE SIZE | 14 X 17 INCHES |
| PIXEL MATRIX | 2560 X 3072 |
| PIXEL PITCH | 140 µm |
| A/D CONVERSION | 16 bit |
| MINIMUM DETECTABLE DOSE | 20nGy (GOS) 14nGy (CSI ) |
| MAXIDOSE (RQA5) | 150 µGy(GOS) 110 µGy (CSI) |
| GHOST ( 300 µGy,60S) | 0.25% |
| SPATIAL RESOLUTION | 3.6LP/mm |
| IMAGE ACQUISION TIME | 2.5s(WIRELESS) |
| X-RAY VOLTAGE | 40-150KV |
